What is Privacy?

Keeping personal information secret, privileged or protected.

Privacy Enhancing Technologies
- Input Privacy
  - Multiple parties collaboratively compute, but no one party can access another party’s data
  - Examples: Homomorphic Encryption, Secure Multiparty Computation, Trusted Execution Environments
- Output Privacy
  - Output of a computation does not reveal sensitive information about individuals in the data
  - Examples: Differential Privacy, k-Anonymity, l-diversity

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

These data releases may be:

descriptive statistics like counts, sums, means, quantiles
descriptive statistics under grouping, like contingency tables, cross-tabulations
machine learning models
synthetic data
statistical models like regression, decision trees, PCA, etc

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

“Differential” in the sense that the technology obscures the difference between data releases on data sets that differ by one individual.

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

Why we use it:

Meaningful
- Protects every individual
- Robust against any adversary
- Immune to auxiliary information
Quantifiable
- Bounded “privacy loss”
- Mathematically rigorous
- Allows for interactivity

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

How it is applied:

add a “small” amount of random noise into statistical computations
careful application of data pre-processing when appropriate

When applied correctly, an estimator/algorithm/mechanism can be shown to “satisfy” differential privacy.

What is Differential Privacy?

Differential privacy is a definition of privacy that mathematically quantifies how much a data release can reveal about any one person in the data.

Example count algorithm:

compute number of records in dataset

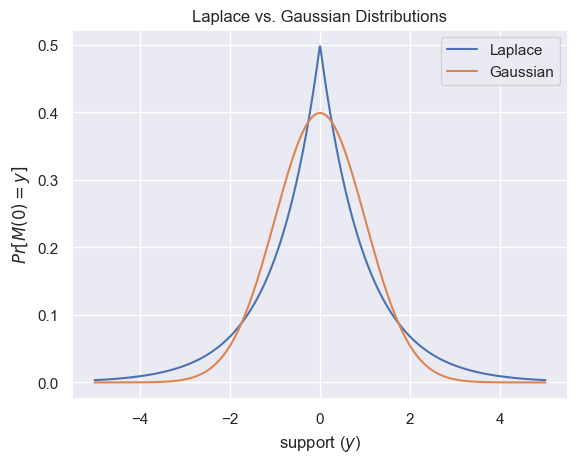

add noise from the laplace distribution

The “privacy loss” of sharing the outcome of this algorithm depends on how many records an individual can contribute to the data, and how much noise is added.

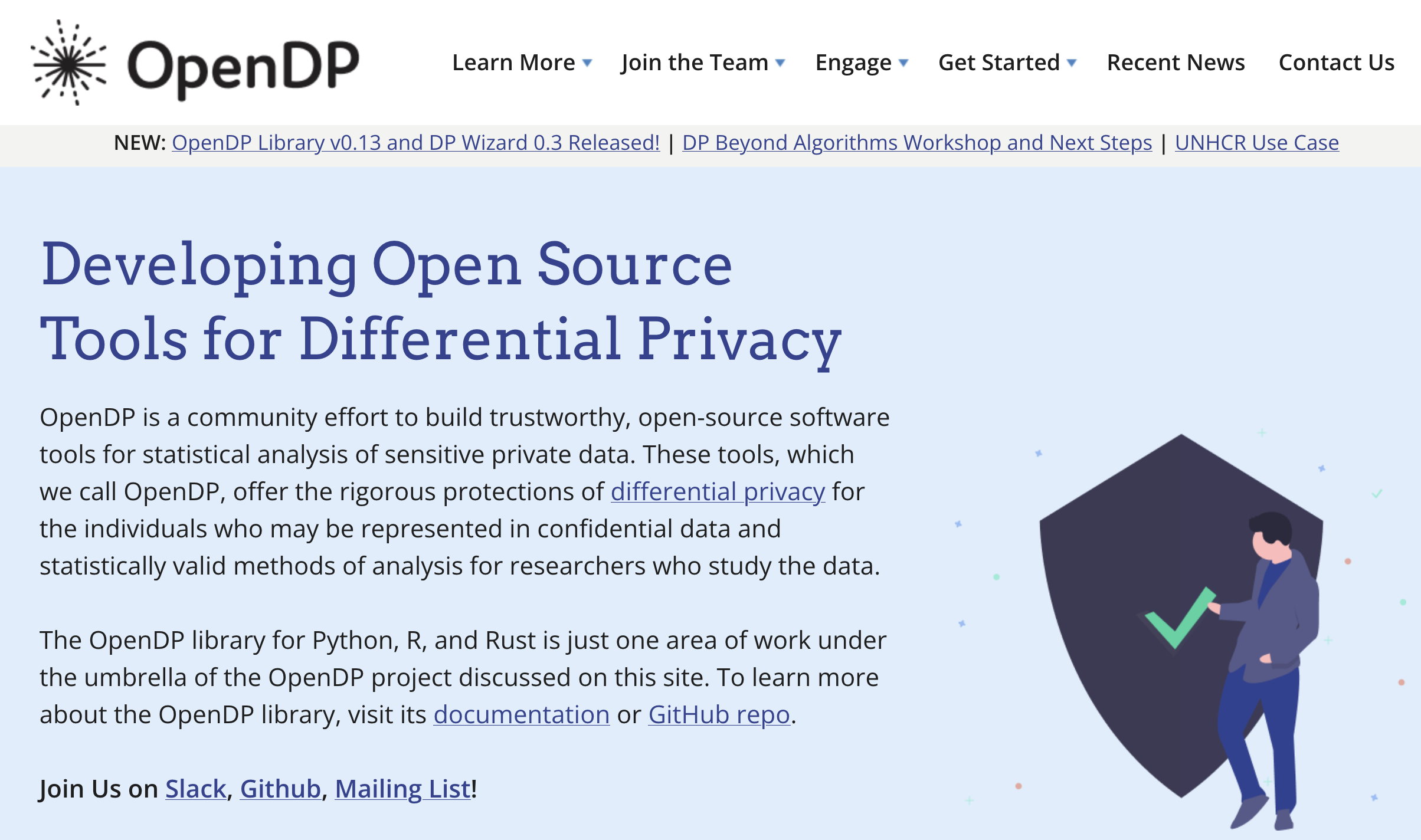

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

designed in a way that facilitates writing proofs for each function
well-defined privacy semantics enforced through the OpenDP Programming Framework
vetting process for checking proofs and code

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

Repositories

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

Documentation

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

descriptive statistics like counts, sums, means, quantiles
descriptive statistics under grouping, like contingency tables, cross-tabulations
synthetic data (upcoming)
statistical models like linear regression, PCA

What is Open Differential Privacy? (OpenDP)

OpenDP is a community effort to build a trustworthy and open-source suite of differential privacy tools that can be easily adopted by custodians of sensitive data to make data releases for research and exploration in the public interest.

UN High Comissioner for Refugees (UNHCR)
- to create synthetic microdata for refugee populations
Swiss Federal Statistical Office
- to prototype tools to release income statistics
- Lomas, a platform for remote data science
Microsoft
- United States Broadband Percentages Database
- Atlas of internet usage in the US
Oblivious
- for major UN and telecom pilot projects
- for Antigranular, a data privacy platform
OpenMined and ChristChurch Call
- audit of recommender systems with Microsoft and DailyMotion

OpenDP Library Setup

First install and import the required dependencies:

%pip install opendp[polars] --pre

>>> import opendp.prelude as dp
>>> import polars as pl
>>>
>>> # The OpenDP team is working to vet algorithms used in these slides.
>>> # Until that is complete we need to opt-in to use these features.
>>> dp.enable_features("contrib")

Example Dataset

Labour Force Survey microdata released by Eurostat surveys working hours of individuals in the European Union collected on a quarterly cadence

>>> lfs_data = pl.scan_csv(
...     dp.examples.get_france_lfs_path(),
...     ignore_errors=True)

Relevant columns:

SEX: 1 | 2
AGE: integer
ILOSTAT: Labour status during the reference week
HWUSUAL: Number of Hours Per Week Usually Worked
QUARTER
YEAR

Context API

>>> context = dp.Context.compositor(
...    data=lfs_data,
...    privacy_unit=dp.unit_of(contributions=36),
...    privacy_loss=dp.loss_of(epsilon=1.0),
...    split_evenly_over=5,
... )

privacy unit: the greatest influence an individual may have on your dataset
- what the “protected change” is
privacy loss: the greatest loss in privacy any one individual may suffer in your dataset
- how much advantage an adversary can gain from the release

Context API

>>> context = dp.Context.compositor(
...    data=lfs_data,
...    privacy_unit=dp.unit_of(contributions=36),
...    privacy_loss=dp.loss_of(epsilon=1.0),
...    split_evenly_over=5,
... )

privacy unit: pessimistic upper bound based on the number of quarters in the data
- 4 quarters across 9 years
privacy loss: for central-DP with aggregate statistics, epsilon = 1 is a safe default

Context API

>>> context = dp.Context.compositor(
...    data=lfs_data,
...    privacy_unit=dp.unit_of(contributions=36),
...    privacy_loss=dp.loss_of(epsilon=1.0),
...    split_evenly_over=5,
... )

Intuition: Differential privacy is a specialized constraint on the stability of a function.

Functional stability is a property that, given a bounded change in the input to a function, you know the output has a bounded change.

Here, we set a bound on how much the input can change (the privacy unit), and a bound on how much the output can change (the privacy loss).

Context API

>>> context = dp.Context.compositor(
...    data=lfs_data,
...    privacy_unit=dp.unit_of(contributions=36),
...    privacy_loss=dp.loss_of(epsilon=1.0),
...    split_evenly_over=5,
... )

APIs similar to existing data science libraries

Polars Count

A simple count of the number of individuals in the data.

>>> query_num_responses = context.query().select(dp.len())

Polars Count

A simple count of the number of individuals in the data.

>>> query_num_responses = context.query().select(dp.len())

With statistical significance alpha = 0.05, or equivalently with 95% confidence…

>>> query_num_responses.summarize(alpha=0.05)
shape: (1, 5)
┌────────┬──────────────┬─────────────────┬───────┬────────────┐
│ column ┆ aggregate    ┆ distribution    ┆ scale ┆ accuracy   │
│ ---    ┆ ---          ┆ ---             ┆ ---   ┆ ---        │
│ str    ┆ str          ┆ str             ┆ f64   ┆ f64        │
╞════════╪══════════════╪═════════════════╪═══════╪════════════╡
│ len    ┆ Frame Length ┆ Integer Laplace ┆ 180.0 ┆ 539.731115 │
└────────┴──────────────┴─────────────────┴───────┴────────────┘

…the true estimate will differ from the noisy estimate by at most 540.

Polars Count

A simple count of the number of individuals in the data.

>>> query_num_responses = context.query().select(dp.len())

Assuming the privacy-utility tradeoff is acceptable, submit the query:

>>> query_num_responses.release().collect() # doctest: +SKIP
shape: (1, 1)
┌─────────┐
│ len     │
│ ---     │
│ u32     │
╞═════════╡
│ 3811915 │
└─────────┘

This consumes a portion of the privacy budget.

Polars Sum

OpenDP properly accounts for all sources of numerical imprecision and potential overflow in both the implementation of the function, as well as in the privacy analysis.

>>> context = dp.Context.compositor(
...    data=lfs_data,
...    privacy_unit=dp.unit_of(contributions=36),
...    privacy_loss=dp.loss_of(epsilon=1.0),
...    split_evenly_over=5,
...    margins=[
...         dp.polars.Margin(
...             # the length of the data is no greater than
...             #    average quarterly survey size (public)
...             #    * number of quarters (public)
...             max_length=150_000 * 36
...             # Remember to only use public information
...         ),
...     ],
... )

Privacy guarantee is valid only if the data has at most max_length records.
Recommended best practice is to only ever create one Context

Polars Sum

>>> query_work_hours = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99.0)
...     .select(
...         pl.col.HWUSUAL.cast(int).fill_null(35).dp.mean(bounds=(0, 80))
...     )
... )

Preprocessing:

filter
cast
imputation
clipping

Polars Sum

>>> query_work_hours = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99.0)
...     .select(
...         pl.col.HWUSUAL.cast(int).fill_null(35).dp.mean(bounds=(0, 80))
...     )
... )

With 95% confidence, the DP sum release will differ from the exact sum by at most 86,000.

>>> query_work_hours.summarize(alpha=0.05)
shape: (2, 5)
┌─────────┬───────────┬─────────────────┬─────────┬──────────────┐
│ column  ┆ aggregate ┆ distribution    ┆ scale   ┆ accuracy     │
│ ---     ┆ ---       ┆ ---             ┆ ---     ┆ ---          │
│ str     ┆ str       ┆ str             ┆ f64     ┆ f64          │
╞═════════╪═══════════╪═════════════════╪═════════╪══════════════╡
│ HWUSUAL ┆ Sum       ┆ Integer Laplace ┆ 28800.0 ┆ 86277.589474 │
│ HWUSUAL ┆ Length    ┆ Integer Laplace ┆ 360.0   ┆ 1078.963271  │
└─────────┴───────────┴─────────────────┴─────────┴──────────────┘

Polars Mean

The mean independently estimates a sum and a count:

>>> query_work_hours = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99.0)
...     .select(
...        pl.col.HWUSUAL.cast(int).fill_null(35).dp.mean(bounds=(0, 80)),
...     )
... )

>>> query_work_hours.summarize(alpha=0.05)
shape: (2, 5)
┌─────────┬───────────┬─────────────────┬─────────┬──────────────┐
│ column  ┆ aggregate ┆ distribution    ┆ scale   ┆ accuracy     │
│ ---     ┆ ---       ┆ ---             ┆ ---     ┆ ---          │
│ str     ┆ str       ┆ str             ┆ f64     ┆ f64          │
╞═════════╪═══════════╪═════════════════╪═════════╪══════════════╡
│ HWUSUAL ┆ Sum       ┆ Integer Laplace ┆ 28800.0 ┆ 86277.589474 │
│ HWUSUAL ┆ Length    ┆ Integer Laplace ┆ 360.0   ┆ 1078.963271  │
└─────────┴───────────┴─────────────────┴─────────┴──────────────┘

The privacy budget allocated to this query is partitioned amongst the two statistics.

Polars Mean

You can equivalently estimate the sum and count separately:

>>> query_work_hours = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99.0)
...     .select(
...        pl.col.HWUSUAL.cast(int).fill_null(35).dp.sum(bounds=(0, 80)),
...        dp.len()
...     )
... )

>>> query_work_hours.summarize(alpha=0.05)
shape: (2, 5)
┌─────────┬──────────────┬─────────────────┬─────────┬──────────────┐
│ column  ┆ aggregate    ┆ distribution    ┆ scale   ┆ accuracy     │
│ ---     ┆ ---          ┆ ---             ┆ ---     ┆ ---          │
│ str     ┆ str          ┆ str             ┆ f64     ┆ f64          │
╞═════════╪══════════════╪═════════════════╪═════════╪══════════════╡
│ HWUSUAL ┆ Sum          ┆ Integer Laplace ┆ 28800.0 ┆ 86277.589474 │
│ len     ┆ Frame Length ┆ Integer Laplace ┆ 360.0   ┆ 1078.963271  │
└─────────┴──────────────┴─────────────────┴─────────┴──────────────┘

Polars Mean (Bounded-DP)

Under “Bounded-DP”, the number of records in the dataset is not considered public information.

>>> # apply domain descriptors (margins) to preprocessed data
>>> context_bounded_dp = dp.Context.compositor(
...     # apply some preprocessing outside of OpenDP
...      # drops "Not applicable" values
...     data=lfs_data.filter(pl.col.HWUSUAL != 99),
...     privacy_unit=dp.unit_of(contributions=36),
...     privacy_loss=dp.loss_of(epsilon=1.0),
...     split_evenly_over=5,
...     margins=[
...         dp.polars.Margin(
...             max_length=150_000 * 36,
...             # ADDITIONAL CODE STARTING HERE
...             # don't protect the total number of records (bounded-DP)
...             invariant="lengths",
...         ),
...     ],
... )

>>> query_mean_work_hours = context_bounded_dp.query().select(
...     pl.col.HWUSUAL.cast(int).fill_null(35).dp.mean(bounds=(0, 80))
... )

>>> query_mean_work_hours.summarize(alpha=0.05)
shape: (2, 5)
┌─────────┬───────────┬─────────────────┬────────┬──────────────┐
│ column  ┆ aggregate ┆ distribution    ┆ scale  ┆ accuracy     │
│ ---     ┆ ---       ┆ ---             ┆ ---    ┆ ---          │
│ str     ┆ str       ┆ str             ┆ f64    ┆ f64          │
╞═════════╪═══════════╪═════════════════╪════════╪══════════════╡
│ HWUSUAL ┆ Sum       ┆ Integer Laplace ┆ 7200.0 ┆ 21569.772352 │
│ HWUSUAL ┆ Length    ┆ Integer Laplace ┆ 0.0    ┆ NaN          │
└─────────┴───────────┴─────────────────┴────────┴──────────────┘

>>> query_mean_work_hours.release().collect() # doctest: +SKIP
shape: (1, 1)
┌───────────┐
│ HWUSUAL   │
│ ---       │
│ f64       │
╞═══════════╡
│ 37.645122 │
└───────────┘

Polars Quantile

>>> candidates = list(range(20, 60))
>>> query_multi_quantiles = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99.0)
...     .select(
...         pl.col.HWUSUAL.fill_null(35).fill_nan(35) \
...         .dp.quantile(a, candidates).alias(f"{a}-Quantile")
...         for a in [0.25, 0.5, 0.75]
...     )
... )
>>> query_multi_quantiles.summarize()
shape: (3, 4)
┌───────────────┬───────────────┬──────────────┬────────┐
│ column        ┆ aggregate     ┆ distribution ┆ scale  │
│ ---           ┆ ---           ┆ ---          ┆ ---    │
│ str           ┆ str           ┆ str          ┆ f64    │
╞═══════════════╪═══════════════╪══════════════╪════════╡
│ 0.25-Quantile ┆ 0.25-Quantile ┆ GumbelMin    ┆ 3240.0 │
│ 0.5-Quantile  ┆ 0.5-Quantile  ┆ GumbelMin    ┆ 1080.0 │
│ 0.75-Quantile ┆ 0.75-Quantile ┆ GumbelMin    ┆ 3240.0 │
└───────────────┴───────────────┴──────────────┴────────┘

Polars Grouping

Stable Keys
- Privacy: Costs an extra “delta” privacy parameter
- Utility: Must release counts, discards keys with small counts
Explicit Keys
- Privacy: No extra “delta” privacy parameter
- Utility: Joins against the explicit key set, imputes missing keys
Invariant Keys
- Privacy: Weakens the integrity of the privacy guarantee
- Utility: Releases all keys in the clear

Polars Grouping with Stable Keys

>>> context = dp.Context.compositor(
...     data=lfs_data,
...     privacy_unit=dp.unit_of(contributions=36),
...     privacy_loss=dp.loss_of(epsilon=1.0 / 4, delta=1e-7),
...     # allow for one query
...     split_evenly_over=1,
... )

>>> query_age_ilostat = (
...     context.query()
...     .group_by("AGE", "ILOSTAT")
...     .agg(dp.len())
... )

>>> query_age_ilostat.summarize()
shape: (1, 5)
┌────────┬──────────────┬─────────────────┬───────┬───────────┐
│ column ┆ aggregate    ┆ distribution    ┆ scale ┆ threshold │
│ ---    ┆ ---          ┆ ---             ┆ ---   ┆ ---       │
│ str    ┆ str          ┆ str             ┆ f64   ┆ u32       │
╞════════╪══════════════╪═════════════════╪═══════╪═══════════╡
│ len    ┆ Frame Length ┆ Integer Laplace ┆ 144.0 ┆ 2773      │
└────────┴──────────────┴─────────────────┴───────┴───────────┘

>>> df = query_age_ilostat.release().collect()

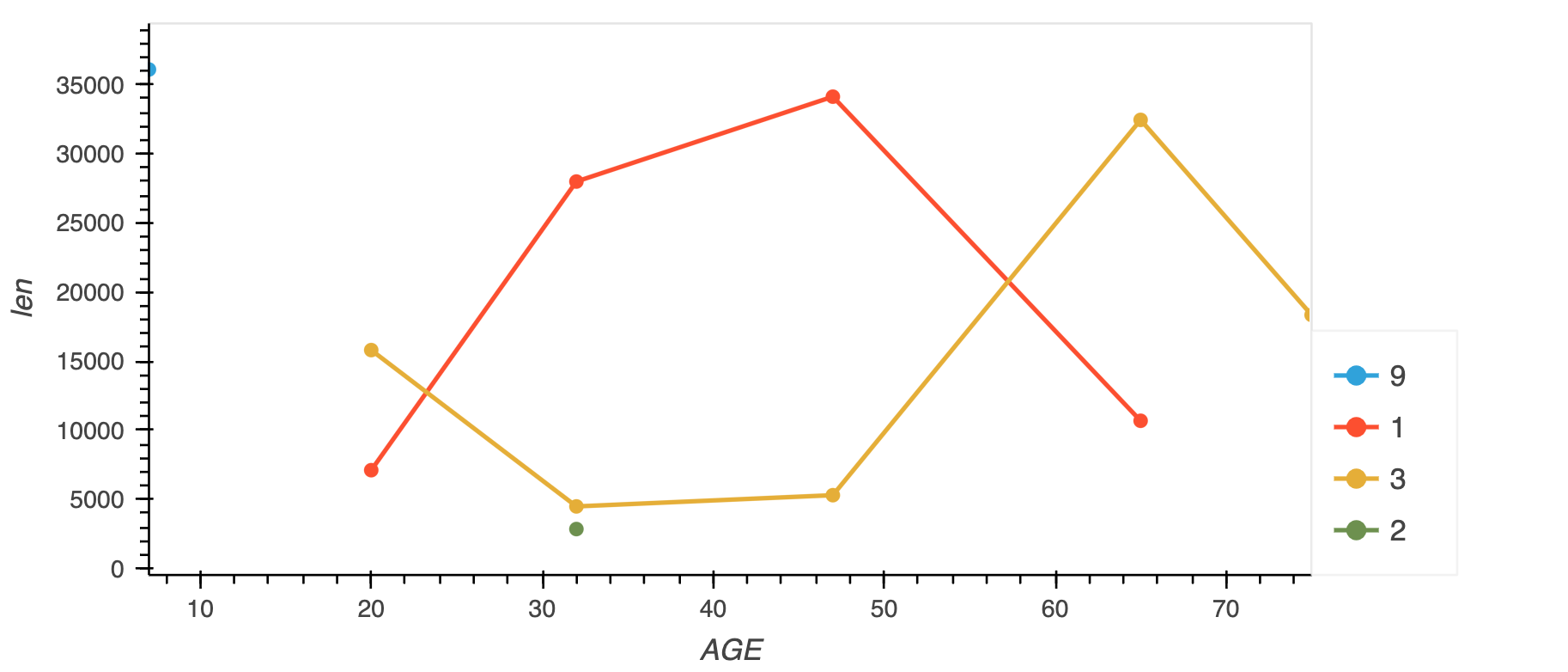

Stable Keys

Polars Grouping with Explicit Keys

Reusing the key-set released in the previous query:

>>> context = dp.Context.compositor(
...     data=lfs_data,
...     privacy_unit=dp.unit_of(contributions=36),
...     privacy_loss=dp.loss_of(epsilon=1.0 / 4),
...     split_evenly_over=1,
...     margins=[dp.polars.Margin(max_length=150_000 * 36)],
... )

>>> query_age_ilostat = (
...     context.query()
...     .group_by("AGE", "ILOSTAT")
...     .agg(pl.col.HWUSUAL.fill_null(35).fill_nan(35).dp.sum((0, 80)))
...     .with_keys(df["AGE", "ILOSTAT"])
... )

>>> query_age_ilostat.summarize()
shape: (1, 4)
┌─────────┬───────────┬───────────────┬──────────────┐
│ column  ┆ aggregate ┆ distribution  ┆ scale        │
│ ---     ┆ ---       ┆ ---           ┆ ---          │
│ str     ┆ str       ┆ str           ┆ f64          │
╞═════════╪═══════════╪═══════════════╪══════════════╡
│ HWUSUAL ┆ Sum       ┆ Float Laplace ┆ 11578.014393 │
└─────────┴───────────┴───────────────┴──────────────┘

Polars Pre-Processing

Stable transformations in with_columns:

>>> query_hwusual_binned = (
...     context.query()
...     # shadows the usual work hours "HWUSUAL" column with binned data
...     .with_columns(pl.col.HWUSUAL.cut(breaks=[0, 20, 40, 60, 80, 98]))
...     .group_by(pl.col.HWUSUAL)
...     .agg(dp.len())
... )

Polars Pre-Processing

Stable transformations in group_by:

>>> query_hwusual_binned = (
...     context.query()
...     .group_by(pl.col.HWUSUAL.cut(breaks=[0, 20, 40, 60, 80, 98]))
...     .agg(dp.len())
... )

Polars Pre-Processing

Data Types: int, float, string, bool, categorical, enum, datetime, time
Boolean logic, binary operations
Cast, clip, cut, imputation, expression filtering, recoding
Date parsing and temporal logic

OpenDP Library User Identifiers

individuals may make an unbounded number of contributions
all contributions from each user share the same identifier

>>> # the PIDENT column contains individual identifiers
>>> # an individual may contribute data under at most 1 PIDENT identifier
>>> privacy_unit = dp.unit_of(contributions=1, identifier=pl.col("PIDENT"))

>>> context = dp.Context.compositor(
...     data=lfs_data,
...     privacy_unit=privacy_unit,
...     privacy_loss=dp.loss_of(epsilon=1.0, delta=1e-8),
...     split_evenly_over=4,
...     margins=[dp.polars.Margin(max_length=150_000 * 36)],
... )

>>> query = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99)
...     .truncate_per_group(10)
...     # ...is equivalent to:
...     # .filter(pl.int_range(pl.len()).over("PIDENT") < 10)
...     .select(pl.col.HWUSUAL.cast(int).fill_null(0).dp.mean((0, 80)))
... )
>>> query.summarize()
shape: (2, 4)
┌─────────┬───────────┬─────────────────┬────────┐
│ column  ┆ aggregate ┆ distribution    ┆ scale  │
│ ---     ┆ ---       ┆ ---             ┆ ---    │
│ str     ┆ str       ┆ str             ┆ f64    │
╞═════════╪═══════════╪═════════════════╪════════╡
│ HWUSUAL ┆ Sum       ┆ Integer Laplace ┆ 6400.0 │
│ HWUSUAL ┆ Length    ┆ Integer Laplace ┆ 80.0   │
└─────────┴───────────┴─────────────────┴────────┘

OpenDP Library: Truncating Per-Group

>>> query = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99)
...     .group_by(pl.col.PIDENT) # truncation begins here
...     .agg(pl.col.HWUSUAL.mean()) # arbitrary expressions can be used here
...     .select(pl.col.HWUSUAL.cast(int).fill_null(0).dp.mean((0, 80)))
... )
>>> query.summarize()
shape: (2, 4)
┌─────────┬───────────┬─────────────────┬───────┐
│ column  ┆ aggregate ┆ distribution    ┆ scale │
│ ---     ┆ ---       ┆ ---             ┆ ---   │
│ str     ┆ str       ┆ str             ┆ f64   │
╞═════════╪═══════════╪═════════════════╪═══════╡
│ HWUSUAL ┆ Sum       ┆ Integer Laplace ┆ 640.0 │
│ HWUSUAL ┆ Length    ┆ Integer Laplace ┆ 8.0   │
└─────────┴───────────┴─────────────────┴───────┘

Polars Context API: Truncating Contributed Groups

>>> quarterly = [pl.col.QUARTER, pl.col.YEAR]
>>> query = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99)
...     .truncate_per_group(1, by=quarterly)
...     .truncate_num_groups(10, by=quarterly)
...     .group_by(quarterly)
...     .agg(dp.len(), pl.col.HWUSUAL.cast(int).fill_null(0).dp.sum((0, 80)))
... )
>>> query.summarize()
shape: (2, 5)
┌─────────┬──────────────┬─────────────────┬────────┬───────────┐
│ column  ┆ aggregate    ┆ distribution    ┆ scale  ┆ threshold │
│ ---     ┆ ---          ┆ ---             ┆ ---    ┆ ---       │
│ str     ┆ str          ┆ str             ┆ f64    ┆ u32       │
╞═════════╪══════════════╪═════════════════╪════════╪═══════════╡
│ len     ┆ Frame Length ┆ Integer Laplace ┆ 80.0   ┆ 1714      │
│ HWUSUAL ┆ Sum          ┆ Integer Laplace ┆ 6400.0 ┆ null      │
└─────────┴──────────────┴─────────────────┴────────┴───────────┘

Zero-Concentrated DP (zCDP)

a weaker definition of privacy than pure-DP, but stronger than approximate-DP
using zCDP causes OpenDP to change the noise distribution

>>> privacy_loss = dp.loss_of(rho=0.5, delta=1e-8)

>>> context = dp.Context.compositor(
...     data=lfs_data,
...     privacy_unit=dp.unit_of(contributions=1, identifier=pl.col("PIDENT")),
...     privacy_loss=privacy_loss,
...     split_evenly_over=4,
...     margins=[dp.polars.Margin(max_length=150_000 * 36)],
... )

Zero-Concentrated DP (zCDP)

Re-running the previous query, but this time under zCDP:

>>> quarterly = [pl.col.QUARTER, pl.col.YEAR]
>>> query = (
...     context.query()
...     .filter(pl.col.HWUSUAL != 99)
...     .truncate_per_group(1, by=quarterly)
...     .truncate_num_groups(10, by=quarterly)
...     .group_by(quarterly)
...     .agg(dp.len(), pl.col.HWUSUAL.cast(int).fill_null(0).dp.sum((0, 80)))
... )
>>> query.summarize()
shape: (2, 5)
┌─────────┬──────────────┬──────────────────┬────────────┬───────────┐
│ column  ┆ aggregate    ┆ distribution     ┆ scale      ┆ threshold │
│ ---     ┆ ---          ┆ ---              ┆ ---        ┆ ---       │
│ str     ┆ str          ┆ str              ┆ f64        ┆ u32       │
╞═════════╪══════════════╪══════════════════╪════════════╪═══════════╡
│ len     ┆ Frame Length ┆ Integer Gaussian ┆ 8.944272   ┆ 57        │
│ HWUSUAL ┆ Sum          ┆ Integer Gaussian ┆ 715.541753 ┆ null      │
└─────────┴──────────────┴──────────────────┴────────────┴───────────┘

Laplace vs. Gaussian Noise

Laplace vs Gaussian

Gaussian noise preserves the normality assumption
Gaussian noise cannot satisfy pure differential privacy
- satisfies the weaker definition of approximate differential privacy or zCDP
Gaussian noise affords greater utility (adds less overall noise) for a similar privacy guarantee when answering many queries
Sensitivity calibration
- Laplace noise scale is proportional to the L₁ distance
- Gaussian noise scale is proportional to the L₂ distance

Direct Use of Mechanisms

The OpenDP Library is designed as a set of modular building blocks
APIs to directly invoke lower-level mechanisms are available
Can be used for research purposes or plugged into existing systems

Laplace Mechanism: Context API

>>> context = dp.Context.compositor(
...     data=[1., 4., 7.],
...     privacy_unit=dp.unit_of(l1=1.),
...     privacy_loss=dp.loss_of(epsilon=1.0),
...     split_evenly_over=1,
...     domain=dp.vector_domain(dp.atom_domain(T=float, nan=False)),
... )

>>> query_lap = context.query().laplace()
>>> query_lap.param()
1.0

>>> query_lap.resolve()
Measurement(
    input_domain   = VectorDomain(AtomDomain(T=f64)),
    input_metric   = L1Distance(f64),
    output_measure = MaxDivergence)

>>> query_lap.release() # doctest: +SKIP
[0.7077237243471377, 4.827747780105709, 5.908376498290111]

Laplace Mechanism: Framework API

>>> m_lap = dp.m.make_laplace(
...     input_domain=dp.vector_domain(dp.atom_domain(T=float, nan=False)),
...     input_metric=dp.l1_distance(T=float),
...     scale=1.0
... )

>>> m_lap
Measurement(
    input_domain   = VectorDomain(AtomDomain(T=f64)),
    input_metric   = L1Distance(f64),
    output_measure = MaxDivergence)

>>> m_lap.map(d_in=1.0)
1.0

>>> m_lap([1., 4., 7.]) # doctest: +SKIP
[1.8894052083047814, 5.543928329362439, 6.961532708302391]

Randomized Response: Context API

>>> context = dp.Context.compositor(
...     data=True,
...     privacy_unit=dp.unit_of(local=True),
...     privacy_loss=dp.loss_of(epsilon=1.0),
...     split_evenly_over=1,
... )

>>> query_rr = context.query().randomized_response_bool()
>>> query_rr.param()
0.7310585786300048

>>> query_rr.resolve()
Measurement(
    input_domain   = AtomDomain(T=bool),
    input_metric   = DiscreteDistance(),
    output_measure = MaxDivergence)

>>> query_rr.release() # doctest: +SKIP
[0.7077237243471377, 4.827747780105709, 5.908376498290111]

Randomized Response: Framework API

>>> m_rr = dp.m.make_randomized_response_bool(
...     prob=0.7310585786300048
... )

>>> m_rr
Measurement(
    input_domain   = AtomDomain(T=bool),
    input_metric   = DiscreteDistance(),
    output_measure = MaxDivergence)

>>> m_rr.map(d_in=1)
0.9999999999999997

>>> m_rr(True) # doctest: +SKIP
True

Randomized Response: Proof

Proofs demonstrate that the privacy guarantees hold.
Proof document

Extensibility: Core Mechanisms

additive noise
- laplace, gaussian
- vector, scalar
- integer, float, bigint
thresholded noise
- laplace, gaussian
- integer, float, bigint
exponential mechanism
canonical noise mechanism
randomized response
- bool, categorical, bitvector
sparse compressed histograms
private selection from private candidates

Extensibility: Programming Framework

A Framework to Understand DP
Measurement
- Input Domain
- Input Metric
- Output Measure
- Function
- Privacy Map
Transformation
- Input Domain
- Input Metric
- Output Domain
- Output Metric
- Function
- Stability Map

Extensibility: Plugins

Extend the library with your own algorithms implemented in Python or Rust
Python and Rust algorithms can be mixed together
Examples:
- Constant Mechanism
- Theil-Sen Regression
- Hands-on Differential Privacy

Book Cover

Extensibility: Supported Languages

language	functionality
Rust	core mechanisms, Polars, native transformations
Python	Rust functionality, Context API, Plugins, scikit-learn
R	Rust functionality (except Polars)
C	Rust functionality

Wrapping Up: Usability Study Recruitment

Researchers at the University of Vermont are conducting a remote usability study to evaluate two different interfaces for privacy-enhancing data science tools. We are looking for participants who

Are at least 18 years old
Reside in the US
Can read and speak English
Have prior data analysis experience with Python

In this study, you will be asked to:

Watch/read a tutorial about a data science tool interface
Complete a series of data analysis tasks using the interface on a shared screen
Speak out aloud your thought process while you complete the tasks
Complete post-task survey and interview

All study procedures will take approximately 1 to 1.5 hours via a Microsoft Teams meeting, the study session will be screen and audio recorded. After completion, you will receive a $40 electronic gift card of your choice (e.g., Amazon.com, Walmart) as a thank-you for your time. If interested, please fill out this online eligibility survey.

If you are selected to participate, we will reach out to you via email typically within 2 weeks. If you have additional questions about participating in this study, please contact the principal investigator, Onyinye Dibia by email Onyinye.Dibia@uvm.edu

Open-Source Differential Privacy with OpenDP

Outline

What is Privacy?

What is Privacy?

What is Privacy?

What is Privacy?

What is Differential Privacy?

What is Differential Privacy?

What is Differential Privacy?

What is Differential Privacy?

What is Differential Privacy?

What is Differential Privacy?

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

What is Open Differential Privacy? (OpenDP)

OpenDP Library Setup

Example Dataset

Context API

Context API

Context API

Context API

Polars Count

Polars Count

Polars Count

Polars Sum

Polars Sum

Polars Sum

Polars Mean

Polars Mean

Polars Mean (Bounded-DP)

Polars Quantile

Polars Grouping

Polars Grouping with Stable Keys

Polars Grouping with Explicit Keys

Polars Pre-Processing

Polars Pre-Processing

Polars Pre-Processing

OpenDP Library User Identifiers

OpenDP Library: Truncating Per-Group

Polars Context API: Truncating Contributed Groups

Zero-Concentrated DP (zCDP)

Zero-Concentrated DP (zCDP)

Laplace vs. Gaussian Noise

Direct Use of Mechanisms

Laplace Mechanism: Context API

Laplace Mechanism: Framework API

Randomized Response: Context API

Randomized Response: Framework API

Randomized Response: Proof

Extensibility: Core Mechanisms

Extensibility: Programming Framework

Extensibility: Plugins

Extensibility: Supported Languages

Wrapping Up: Usability Study Recruitment

Conclusion
